An adjustable, automatic door
bottom seal that is spring loaded
to lift clear of the floor when
the door is opened. Acoustically
designed, featuring extruded silicon
gaskets for medium temperature
smoke applications. It is operated
automatically by pressure on the
door jamb by its adjustable strike. It is

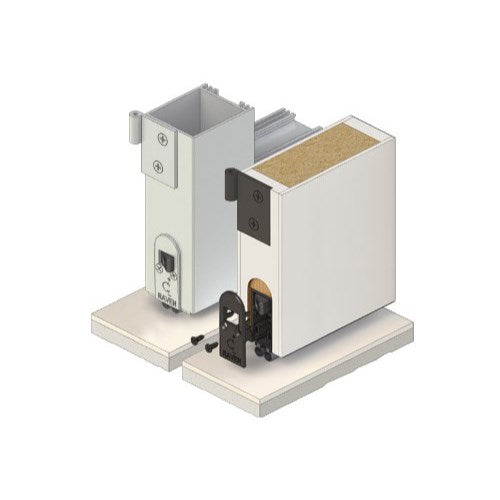

Location:Fully morticed into the
bottom of single and double solid core
butt hinged doors (minimum door
thickness of 40mm). For double doors,
plain meeting stiles are required. Can
also be fitted into the bottom rail of a
metal door by the fabricator.
Min/Max Gap: 3mm to 14mm.
Finish: Satin clear (silver) or black
anodised aluminium (15µm).
Fixing: Screw fix. Colour matched
escutcheon plates and zinc plated,
cross recess head S.T. screws
Seal:RP3126Si. Black silicon rubber
Sizes: 1500mm, 1220mm, 1070mm,
920mm, 820mm, 600mm to 305mm
(min). Seals cut back to exact size.
- Cert. GVYI.R37913
Acoustic AUS/NZ:NCC Spec. F5.5
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
Fire AUS/NZ: NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
UK/EU:Approved Document B.
BS EN 1634-1.
- FRL & FRR-/240/30.
- Gasket flammability index 1 when
tested to AS1530.2.
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
Energy NCC Pt. 22.214.171.124 & J3.4.
DurabilityTested to over 1,000,000
operating cycles without failure.
RAVEN RP127Si Screw Bag/Esc Plate Set BK
