Raven RP129F
  • Specification
  • Downloads

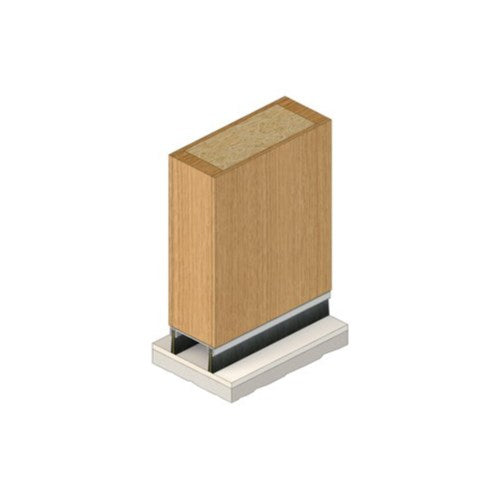

A heavy duty medium temperature smoke door bottom seal. The seal is achieved by a pair of nylon brush strips with a medium temperature smoke barrier. The seal can be checked out or drilled to accommodate the pivot, thereby providing a continuous seal. Can be used in conjunction with RP130Si, other Raven perimeter seals and threshold plates.

  • Location:Bottom of double butt hinged or centre pivot double acting doors.
  • Min/Max Gap:15mm to 18mm.
  • Finish:Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
  • Seal: RP52F. Black fine and dense nylon filaments, UV stabilised medium temperature smoke barrier fin and galvanised steel spine.
  • Sizes:Available in stock lengths.
  • Cert. GVYI.R37913
  • Acoustic AUS/NZ:NCC Spec. F5.5
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire Brush Strip flammability index 1 when tested to AS1530.2.
  • Smoke AUS/NZ:NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2(b). AS1530.7 & BS EN 1634-3 (similar to BS 476 section 31.1). Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • DurabilityTested to over 1,000,000 operating cycles without failure.
  • when used on a garage in accordance with AS 3959.

RAVEN RP129F Door Bottom Seal 1250mm

SKU WSRP129F.1250.CA

In stock, within 1 week


Clear AnodisedPainted
1250mm3000mm

Total Price

$87.19
