Raven RP130Si
  • Specification
  • Downloads

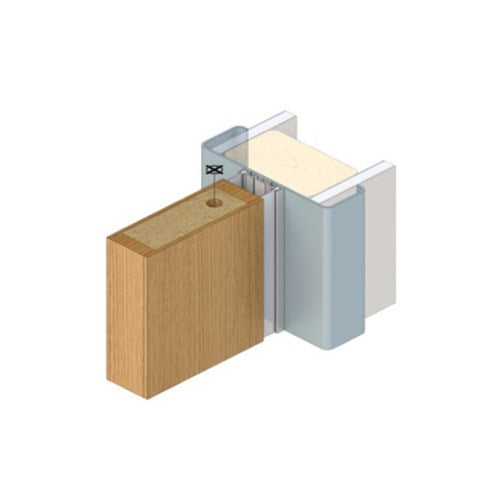

A heavy duty medium temperature smoke seal designed to be fitted to the door head & jamb reveal of pivot door frames. May also be installed to the door stile edges and to one leaf of plain meeting stiles of timber double pivot doors. The aluminium body of the seal can be checked out or drilled to accommodate pivot hardware and latch ware at the meeting stile.

  • Location:Around frames of single and double acting pivot doors and the stiles of timber doors.
  • Min/Max Gap:14mm to 18mm.
  • Finish: Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
  • Seal:RP3129Si. Fins: Light grey silicon rubber (SE). Cover strip: Light grey PVC.
  • Sizes:Available in door set sizes or stock lengths.
  • Fire:Gasket flammability index 1 when tested to AS1530.2.
  • Smoke: NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • Energy:NCC Pt. 3.12.3.3 & J3.4.

RAVEN RP130Si Perimeter Seal 2100mm

SKU WSRP130Si.2100.CA

In stock, within 1 week


Clear AnodisedPainted
2100mm2750mmDouble Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm

Total Price

$124.28
