Raven RP138
  • Specification
  • Downloads

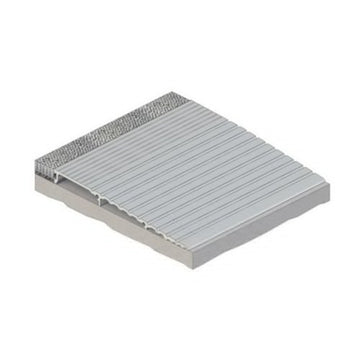

A heavy duty threshold ramp that can be used as a border for internal floor matting or be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b). Ideal for larger style commercial door frames. RP138 has been designed to accommodate a concealed screw fix through the door jambs.

  • Location: Door sill.
  • Finish:Satin clear (silver) anodised aluminium (25µm).
  • Fixing:Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Sizes:3000mm, 2500mm, 2000mm, 1250mm, 1000mm.
  • Cert. GVYI.R37913
  • Access & Mobility AUS/NZ:: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU:Approved Document M.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30 and FD180.
  • when used with a BAL rated door bottom seal in accordance with AS 3959

RAVEN RP138 Threshold Plate 1000mm

SKU WSRP138.1000.CA

In stock, within 1 week


Clear Anodised
1000mm1250mm2000mm2500mm3000mm

Total Price

$122.09
