Raven RP150
  • Specification
  • Downloads

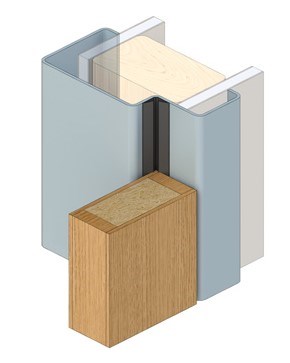

Delta Seal ™ RP150 are co-extruded PVC acoustic and smoke seals. Discreetly located in the protected corners of rebated timber or steel door and window frames. RP120 is suitable for new and retrofit applications. Can be used in conjunction with Raven door bottom seals and astragals and threshold plates.

  • Location:Around rebated frames of single and double butt hinged doors and windows.
  • Min/Max Gap: 3mm to 5.5mm.
  • Fixing: Aggressive self adhesive backing tape on both sides of the carrier. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
  • Seal: Black or white co-extruded rigid and flexible flame retardant PVC.
  • Sizes:Available in stock lengths.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. (Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22).
  • FRL & FRR-/240/30 and FD240.
  • Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RP150 Batwing Perimeter Seal, Double Door Set 6300mm

SKU WSRP150.DDS.BK

In stock, within 1 week


Black
Double Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm

Total Price

$107.35
