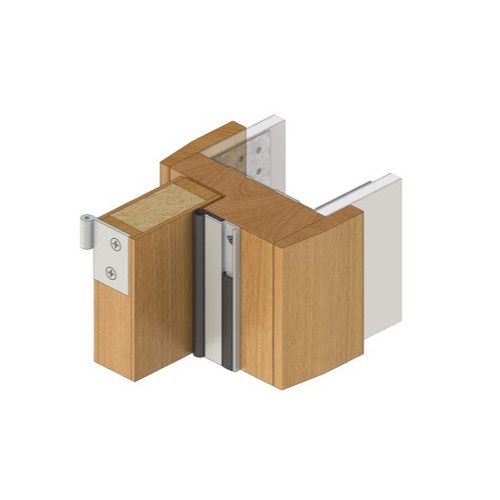

A S.E. EPDM compression seal ideal
for smoke and weather applications
on butt hinged doors. Can be
mitred or butt jointed for a neat
finish. Its aluminium carrier is sturdy
and slotted for adjustment with
concealed fixings. It is quick and easy
to install on door stops around the
jamb and head and can be fitted
without removing the door.
Can be used on all four sides of the
door to form a bulk head seal.
Note: A built up sill similar in profile to
the stops will be required for bulkhead
applications.
-
Location: Head and jambs of single
and double butt hinged doors or
bulk head applications.
-
Min/Max Gap:0mm to 7mm.
-
Finish:Satin clear (silver), bronze
anodised aluminium (15µm) or paint
at extra cost.
-
Fixing:Screw fix. Zinc plated, cross
recess head S.T. screws and cover
strip supplied.
-
Seal: RP323. Black EPDM (SE).
-
Sizes:Available in door set sizes or
stock lengths.
-
Acoustic AUS/NZ:NCC Spec. F5.5.
-
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Tests above are similar to BS
EN 1634-1, BS 476 Pt. 20 & 22.
FRL & FRR-/240/60 and FD240.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
-
EnergyNCC Pt. 3.12.3.3 & J3.4
RAVEN RP23/RP78 Screw Bag 2500mm
