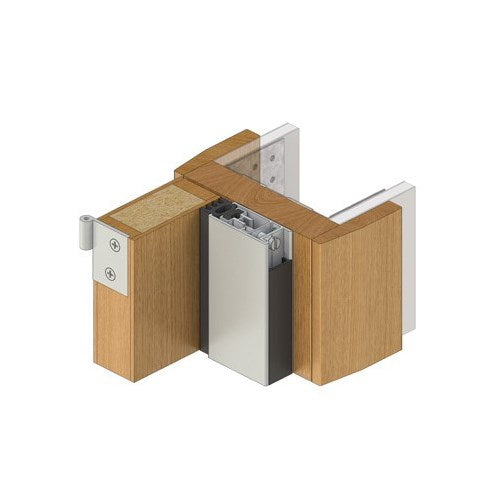

Granted an Australian Design Award,
the RP24 is an effective door stop
seal for noise, light and smoke. It can
be butt jointed for a neatly finished
continuous seal, replacing the
conventional doorstop on metal or
timber framed doors. With tamper
proof concealed fixings, the RP24
utilises independently adjustable
screws to achieve up to 8mm sealing
adjustment for maximum noise
control. The closed cell S.E. EPDM seal
only requires normal door closing
force.
Note: If fixing to rebated frames of
single doors, specify a long backset
door latch.
-
Location: Head and jambs of single
and double butt hinged doors.
-
Min/Max Gap:0mm to 8mm.
-
Finish:Satin clear (silver) anodised
aluminium (15µm) or paint at extra
cost.
-
Fixing:Screw fix. Zinc plated, cross
recess head S.T. screws and cover
strip supplied.
-
Seal:RP338. Black closed cell sponge
EPDM (SE).
-
Sizes:Available in door set sizes or
stock lengths.
-
Acoustic AUS/NZ:NCC Spec. F5.5.
-
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Tests above are similar to BS
EN 1634-1, BS 476 Pt. 20 & 22.
FRL & FRR-/240/30 and FD240.
-
EnergyNCC Pt. 3.12.3.3 & J3.4
RAVEN RP24 Perimeter Seal 2250mm
