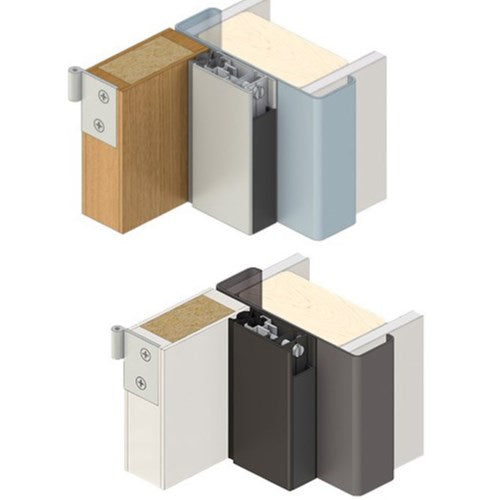

Raven RP24Si - Door Sets
RP24Si is an effective door stop seal for noise, light and smoke. It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors. With tamper proof concealed fixings, the RP24Si utilises independently adjustable screws to achieve up to 8mm sealing adjustment for maximum noise control. The silicon rubber seal only requires normal door closing force. Note: If fixing to rebated frames of single doors, specify a long backset door latch.
- Location: Head and jambs of single and double butt hinged doors.
- Min/Max Gap:0mm to 8mm.
- Finish:Satin clear (silver), bronze, black anodised aluminium (15µm) or paint at extra cost.
- Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
- Seal:RP338Si. Grey or black silicon rubber (SE).
- Sizes: Available in door set sizes or stock lengths.
- Cert. GVYI.R37913
- Acoustic AUS/NZ:NCC Spec. F5.5.
- UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
- Fire AUS/NZ:NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
- Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
- UK/EU:Approved Document B. BS EN 1634-1.
- FRL & FRR-/240/60 and FD240. To be used on door frames with a 25mm stop. Gasket flammability index 1 when tested to AS1530.2.
- SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
- EnergyNCC Pt. 3.12.3.3 & J3.4.
