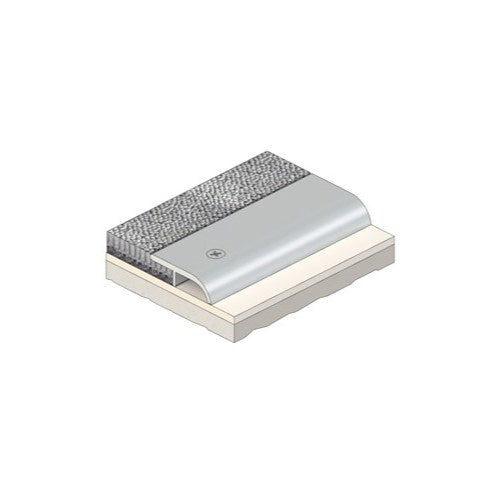

A heavy duty threshold plate designed for sill and carpet edge protection. Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.

  • Location:Door sill.
  • Min/Max Gap:5mm to 20mm (user determined).
  • Finish:Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost
  • Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Sizes:Available in stock lengths.
  • Access & Mobility NZ::NZ BC Compliance Doc. D1/AS1 1.3.2. UK/EU: Approved Document M.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

RAVEN RP27 Threshold Plate 1000mm

SKU WSRP27.1000.CA

In stock, within 1 week


Clear Anodised
1000mm2000mm3000mm

Total Price

$63.46
