Raven RP28
  • Specification
  • Downloads

RP28 and RP29 are wide, heavy duty threshold plates with ribbed profiles and integral sill gaskets. They are ideal for use with pivot hinge doors. Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.

  • Location:Door sill.
  • Min/Max Gap:5mm to 20mm (user determined).
  • Finish: Satin clear (silver) anodised aluminium (25µm).
  • Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Seal:RP404a. Grey flexible PVC.
  • Sizes:Available in stock lengths
  • Access & Mobility NZ::NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU: Approved Document M.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

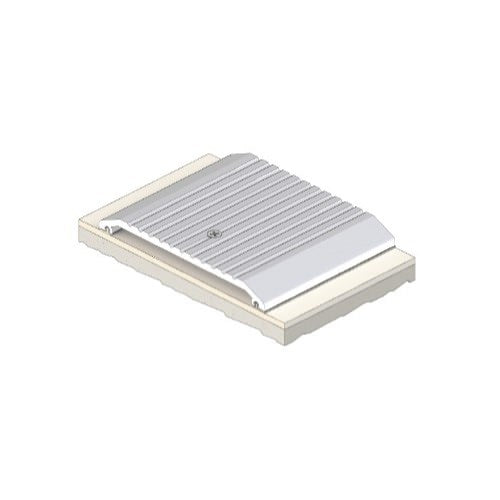

RAVEN RP28 Threshold Plate W127mm x H13mm high x L2000mm

SKU WSRP28.2000.CA

In stock, within 1 week


Clear Anodised
2000mm1000mm3000mm

Total Price

$284.36
