Raven RP29
  • Specification
  • Downloads

RP28 and RP29 are wide, heavy duty threshold plates with ribbed profiles and integral sill gaskets. They are ideal for use with pivot hinge doors. Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.

  • Location:Door sill.
  • Min/Max Gap:5mm to 20mm (user determined).
  • Finish: Satin clear (silver) anodised aluminium (25µm).
  • Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Seal:RP404a. Grey flexible PVC.
  • Sizes:Available in stock lengths
  • Access & Mobility NZ::NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU: Approved Document M.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

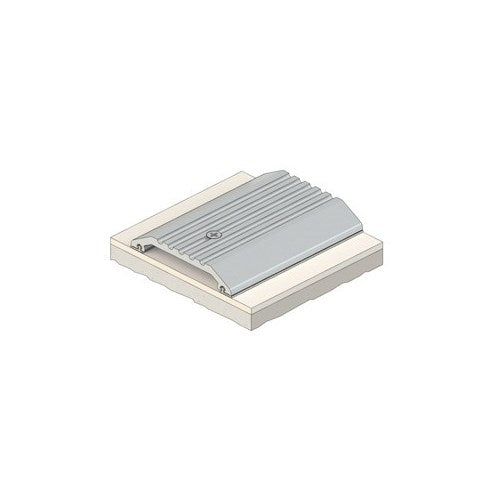

RAVEN RP29 Threshold Plate 1000mm

SKU WSRP29.1000.CA

In stock, within 1 week


Clear Anodised
1000mm2000mm2500mm3000mm

Total Price

$105.98
