Raven RP2B Aluminium
  • Specification
  • Downloads

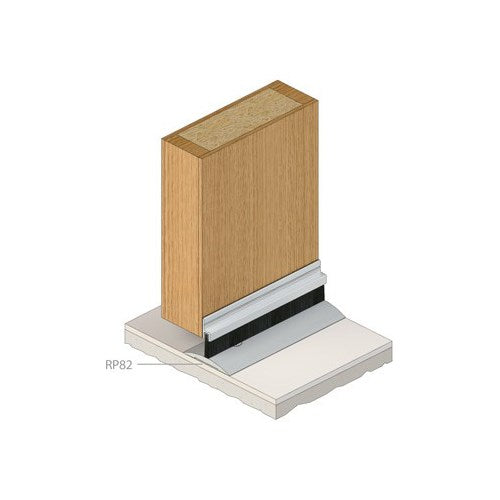

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door. Used in conjunction with Raven threshold plates.

  • Location:Bottom of single, double, sliding and double acting doors.
  • Min/Max Gap:Up to 13mm (user determined).
  • Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
  • Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
  • Seal:Black fine, dense, UV stabilised nylon filaments.
  • Sizes: Available in stock lengths.
  • FireBrush Strip flammability index 1 when tested to AS1530.2.
  • EnergyNCC Pt. 3.12.3.3 & J3.4
  • when used on a garage in accordance with AS 3959.

RAVEN RP2B Aluminium Only 3000mm

SKU WSRP2B.AL.3000.CA

In stock, within 1 week


Clear Anodised
3000mm

Total Price

$80.96
