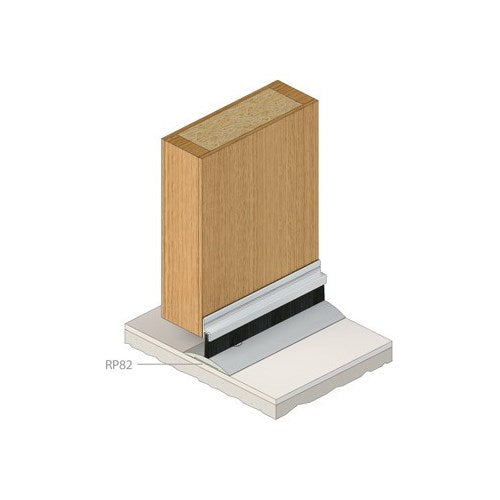

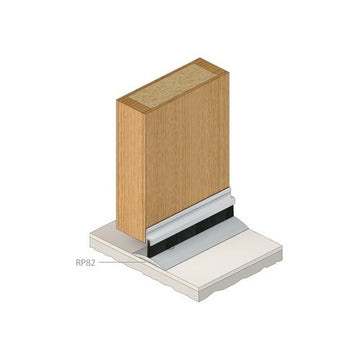

A nylon brush strip seal with an
anodised aluminium carrier that
mounts to the inside or outside of
a door.
Used in conjunction with Raven
threshold plates.
-
Location:Bottom of single, double,
sliding and double acting doors.
-
Min/Max Gap:Up to 13mm (user
determined).
-
Finish: Satin clear (silver), bronze
anodised aluminium (15µm) or paint
at extra cost.
-
Fixing: Self adhesive or can be
screw fixed. Note: Contact surface
must be clean, smooth and if painted,
well cured. Self adhesive seals will not
adhere to oiled or alkyd finishes or
to easy clean wash and wear paint
surfaces.
-
Seal:Black fine, dense, UV stabilised
nylon filaments.
-
Sizes: Available in stock lengths.
-
FireBrush Strip flammability index 1
when tested to AS1530.2.
-
EnergyNCC Pt. 3.12.3.3 & J3.4
- when used on a garage in
accordance with AS 3959.
RAVEN RP2B 13mm Brush Only 1000mm
