Raven RP3
  • Specification
  • Downloads

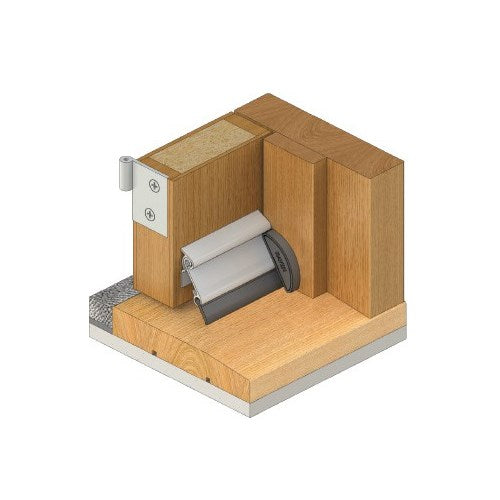

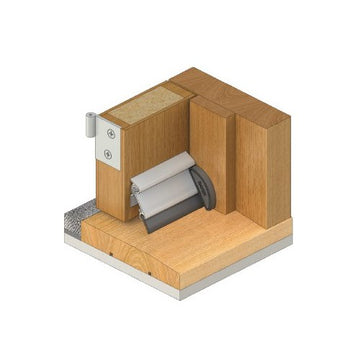

A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This DIY product has been granted an Australian Design Award. Ideal for residential and light commercial applications such as motels and retirement villages. Can be used in conjunction with Raven threshold plates.

  • Location: Bottom of single inward opening butt hinged doors.
  • Min/Max Gap:3mm to 16mm.
  • Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).
  • Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied. Fixing holes are pre-slotted.
  • Seal:RP303. Black EPDM or TPE.
  • Sizes: 915mm and 1220mm maximum (between door stops).
  • FireGasket flammability index < 5 when tested to AS1530.2.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • DurabilityTested to over 1,000,000 operating cycles without failure.

RAVEN RP3 Door Bottom Seal 1220mm

SKU WSRP3.1220.BZA

In stock, within 1 week


Bronze AnodisedGold AnodisedClear Anodised
1220mm920mm915mm820mm

Total Price

$144.51$103.60
