Raven RP31
  • Specification
  • Downloads

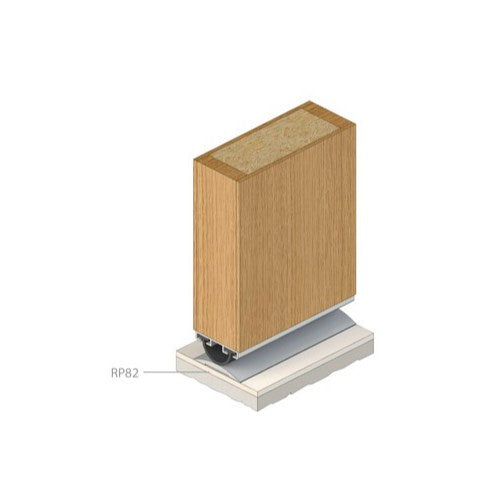

The RP31 are heavy duty sweep/compression seals. The RP30 is fitted into a concealed, machined groove that should be deep enough to allow packing for adjustment. Forms a weather seal when used with Raven RP13 or RP82 threshold plates. The RP31 has greater compression than the RP30 and the design does not allow adjustment so it should not be installed in situations where adjustability is required. Forms a weather seal when used with Raven RP82 or RP115 threshold plates.

  • Location: Bottom of doors, meeting stiles or user determined bumper strip.
  • Min/Max Gap:12mm to 17mm (user determined).
  • Finish:Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied.
  • Seal: RP330. Black EPDM.
  • Sizes:Available in stock lengths.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP31 Door Bottom Seal 1000mm

SKU WSRP31.1000.CA

In stock, within 1 week


Clear AnodisedPainted
1000mm3000mm2250mm

Total Price

$81.02
