An adjustable, automatic door
bottom seal that is spring loaded to
lift clear of the floor when the door
is opened. It is acoustically designed,
featuring silicon gaskets for medium
temperature smoke and fire door
applications. Operated automatically
by pressure against the door jamb or
stop on its adjustable strike.
-

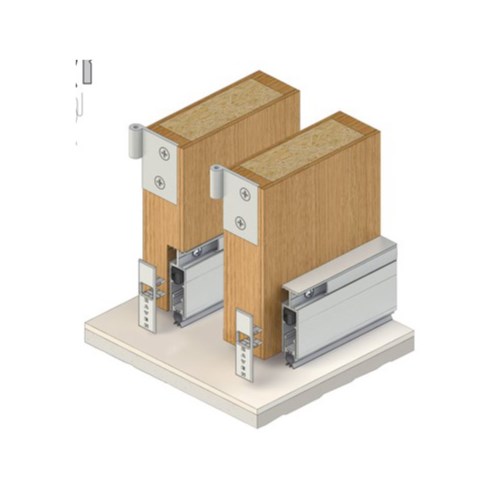

Location: Face mounted or semimorticed into the bottom of solid
core single and double butt hinged
doors. The RP35Si can also be face
mounted to the bottom of metal
doors.
-
Min/Max Gap: 3mm to 13mm
-
Finish:Satin clear (silver) or bronze
anodised aluminium (15µm).
-
Fixing: Concealed screw fix. Zinc
plated, cross recess head S.T. screws,
colour matched escutcheon plates
and cover strip supplied. Fixing holes
are pre-slotted.
-
Seal: : RP308Si. Grey silicon rubber
(SE).
-
Sizes:1220mm, 1070mm, 920mm,
820mm, 600mm, 380mm to 295mm
(min). Seals cut back to exact size.
- ANSI/BHMA A156.22
-
Acoustic AUS/NZ: NCC Spec. F5.5.
-
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ: NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
1634-1).
- FRL & FRR-/240/60 and FD240.
- Gasket flammability index 1 when
tested to AS1530.2.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
-
Design for Access and MobilityHigh efficiency mechanism to assist
with the closing force requirements
detailed in AS1428.1.
-
DurabilityTested to over 1,000,000
operating cycles without failure.
RAVEN RP35Si Screw Bag/Esc Plate Set BA
SKU WSRP35Si.A35SIBP1.BZA
