A heavy duty, automatic door
bottom seal that is spring loaded to
lift clear of the floor when the door
is opened. It is self levelling and
reversible for left and right handed
operation. Acoustically designed,
it features an EPDM foam gasket
for acoustic door applications and
doubles as a kick plate when semimorticed. Operated automatically
by pressure against the door jamb or
stop on its adjustable brass strike.
Location: Face mounted or semimorticed into bottom of single and
double butt hinged doors. For semimortice minimum door thickness
of 50mm for rebated meeting stiles
and 40mm for plain meeting stiles is
required. The RP38 can also be face
mounted to the bottom of metal
Min/Max Gap: 3mm to 13mm.
Finish: Satin clear (silver) anodised
aluminium (15µm) or paint at extra
Fixing: Screw fix. Colour matched
escutcheon plates and zinc plated,
cross recess head S.T. screws
Seal:RP338. Black EPDM sponge (SE).
Sizes:1500mm, 1220mm, 1070mm,
920mm, 610mm, 450mm to
300mm(min). Seals cut back to exact
Acoustic AUS/NZ:NCC Spec. F5.5.
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
Fire & Smoke AUS/NZ:NCC Spec.
C3.4. AS1530.4 & AS/NZS 1905.1. NZ
BC Compliance Doc. C/AS1 6.19.2 &
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
- FRL & FRR-/240/30 and FD240.
EnergyNCC Pt. 184.108.40.206 & J3.4.
Design for Access and MobilityHigh efficiency mechanism to assist
with the closing force requirements
detailed in AS1428.1.
DurabilityTested to over 1,000,000
operating cycles without failure.

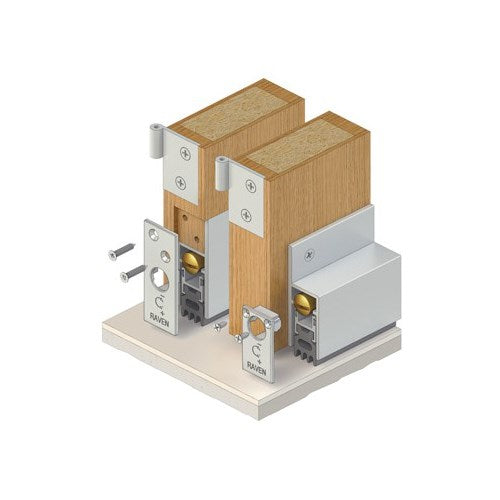

RAVEN RP38 Face Mount Plate Set & Screws
