Raven RP39
  • Specification
  • Downloads

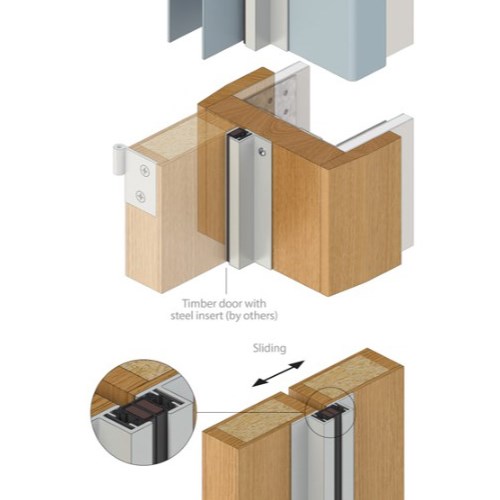

A refrigeration type vinyl magnetic strip in an anodised aluminium housing. RP39 provides an astragal for timber and metal doors. The magnetic strip has sufficient closing strength that latches may not be required. Note: As an astragal seal, RP39 is best suited to infrequent use and door closer hold open applications.

  • Location: Head, jambs and stiles of single and double butt hinged doors, sliding doors or bulkhead applications. Butt hinges recommended.
  • Min/Max Gap: 4mm to 8mm (meeting stiles).
  • Finish: Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Screw fix. Zinc plated, cross recess head S.T. screws supplied. Fixing holes are slotted.
  • Seal: Black PVC.
  • Sizes:Available in stock lengths.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP39 Perimeter Seal 2250mm

SKU WSRP39.2250.CA

In stock, within 1 week


Clear AnodisedBlackPainted
2250mm3000mm2500mm

Total Price

$108.21
