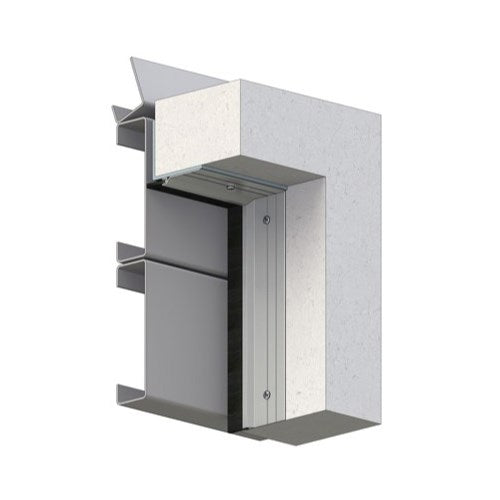

A nylon brush strip seal with
aluminium carrier that is ideal where
larger gaps are encountered. The
RP41 can be fitted to lintels of roll-up
doors to help prevent the ingress
of birds and wind blown embers in
bushfire prone areas.
Note: Roll-up doors must have a fairly
constant sealing gap when the door
operates to avoid excessive flexing of
brush filament.
-
Location:Bottom of single, double,
revolving or sliding and double
acting pivot doors. Lintels of roll-up
garage doors or lintels and stiles of
panel-lift garage doors.
-
Min/Max Gap: 30mm to 50mm (user
determined).
-
Finish: Satin clear (silver) anodised
aluminium (15µm).
-
Fixing:Screw fix. Zinc plated, cross
recess head S.T. screws supplied.
-
Seal: Black fine, dense, UV stabilised
nylon filaments.
-
Sizes:Available in stock lengths.
-
FireBrush Strip flammability index 1
when tested to AS1530.2.
-
UK/EU:Approved Document M.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP41 Brush Strip 3000mm
