A medium temperature smoke seal
that is designed to suit automatic
sliding door operated, frameless
glass and metal frame doors.

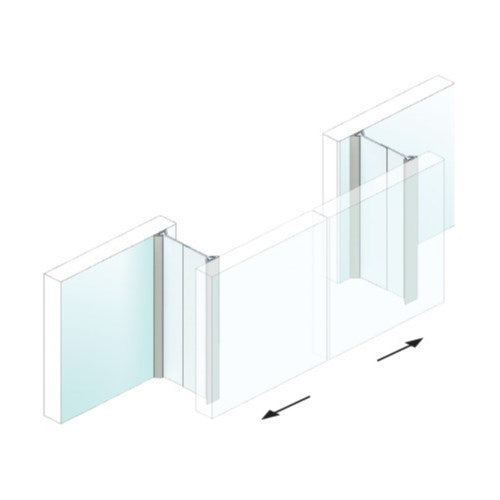

Comprising of two sealing sections,
the RP43Si is fitted in an overlap
configuration to effectively seal the
vertical gap between the fixed and
active sliding door leaf.
Can be used in conjunction with
Raven brush strip door bottom seal
RP74F, astragal seals RP79H, RP79Si
and threshold plates.
-
Location:Automatic sliding door
operated, frameless glass & metal
frame doors
-
Min/Max Gap: 30mm to 50mm
(prior to installation).
-
Finish: Satin clear (silver) anodised
aluminium 15µm.
-
Fixing:Self adhesive.
-
Seal: RP343Si. Light grey silicon
rubber (SE).
-
Sizes:Available in stock lengths
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP43Si Astragal Seal Twin 3000mm
