Raven RP44Si
  • Specification
  • Downloads

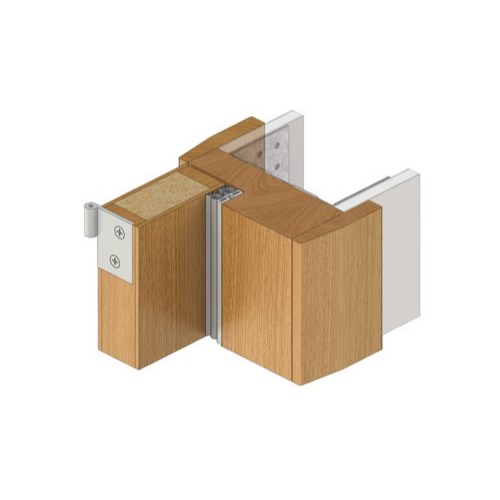

An effective acoustic and medium temperature smoke seal, the RP44Si has two extruded silicon bulb gaskets and can be mitred or butt jointed for a neat finish. Can be installed on door stops with sufficient depth and broad butt hinges should be specified. Note: Check backset door latch requirements.

  • Location:Head and jambs of single and double, broad butt hinged doors or bulkhead applications.
  • Min/Max Gap: 8mm to 10mm (allow 13mm to 14mm for installation, refer to product dimensions).
  • Finish: Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Screw fix. Zinc plated, cross recess head S.T. screws supplied.
  • Seal: RP308Si. Grey silicon rubber (SE).
  • Sizes:Available in stock lengths.
  • Acoustic AUS/NZ: NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Smoke AUS/NZ:NCC Spec. C3.4. NZ BC Compliance Doc C/AS1 6.19.2(b).
  • UK/EU:Approved Document B. Gasket flammability index 1 when tested to AS1530.2.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP44Si Perimeter Seal 1000mm

SKU WSRP44Si.1000.CA

In stock, within 1 week


Clear AnodisedPainted
41000mm42250mm42500mm43000mm

Total Price

$61.12
