Raven RP47Si
  • Specification
  • Downloads

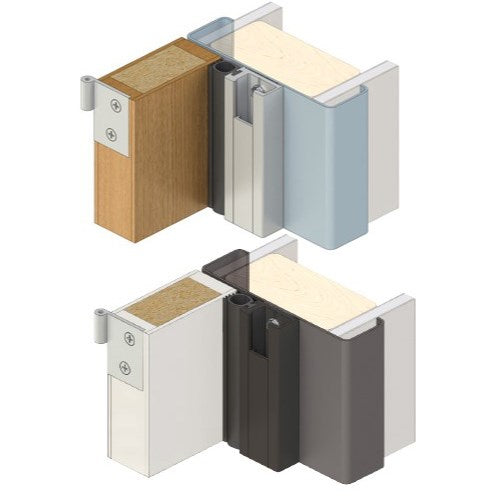

A heavy duty seal designed to replace the conventional door stop. The RP47Si is ideal for medium temperature smoke / fire door applications and has excellent acoustic qualities for heavy traffic areas. With concealed fixings and adjustable fastener slots to achieve an optimum seal, a space for low voltage cable management can be found behind a tamper proof cover strip. RP47Si can be mitred or butt jointed for a neat installation. Can be used on all four sides of the door to form a bulk head seal. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

  • Location:Head and jambs of single and double butt hinged doors or bulk head applications.
  • Min/Max Gap: 0mm to 17mm.
  • Finish: Satin clear (silver), black anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, Tek self drilling screws (metal) supplied.
  • Seal: RP347Si. Black silicon rubber (SE).
  • Sizes:Available in door set sizes or stock lengths.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ: NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc C/AS1 6.19.2 & App C6.1.1.
  • UK/EU:Approved Document B.
  • BE EN 1634-1.
  • FRL & FRR-/240/30. To be used on door frames with a 25mm stop. Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP47Si Perimeter Seal 1000mm

SKU WSRP47Si.1000.CA

In stock, within 1 week


Clear AnodisedPaintedBlack
71000mm7 6500mm73000mm72250mm72500mm72750mm1000mmDouble Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm2250mm2500mm2750mm3000mm6500mm

Total Price

$118.12
