Raven RP47Si Cover Plate

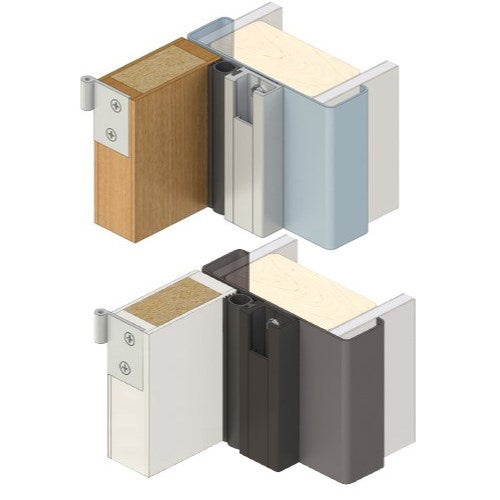

A heavy duty seal designed to replace the conventional door stop. The RP47Si is ideal for medium temperature smoke / fire door applications and has excellent acoustic qualities for heavy traffic areas. With concealed fixings and adjustable fastener slots to achieve an optimum seal, a space for low voltage cable management can be found behind a tamper proof cover strip. RP47Si can be mitred or butt jointed for a neat installation. Can be used on all four sides of the door to form a bulk head seal. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

• Location:Head and jambs of single and double butt hinged doors or bulk head applications.
• Min/Max Gap: 0mm to 17mm.
• Finish: Satin clear (silver), black anodised aluminium (15µm) or paint at extra cost.
• Fixing:Concealed screw fix. Zinc plated, Tek self drilling screws (metal) supplied.
• Seal: RP347Si. Black silicon rubber (SE).
• Sizes:Available in door set sizes or stock lengths.
• Cert. GVYI.R37913.
• Acoustic AUS/NZ: NCC Spec. F5.5.
• UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
• Fire AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc C/AS1 6.19.2 & App C6.1.1.
• UK/EU:Approved Document B.
• BE EN 1634-1.
• FRL & FRR-/240/30. To be used on door frames with a 25mm stop. Gasket flammability index 1 when tested to AS1530.2.
• SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
• EnergyNCC Pt. 3.12.3.3 & J3.4.
