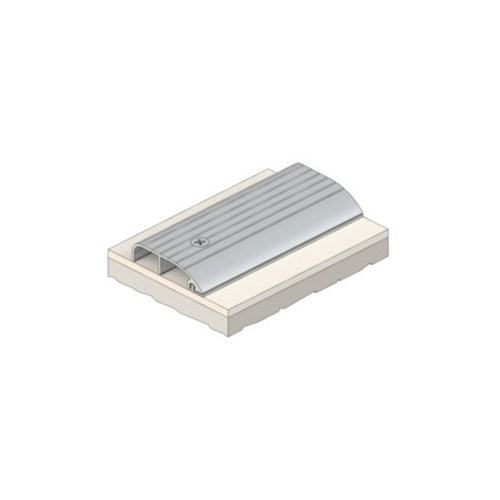

Raven RP4B
  • Specification
  • Downloads

A medium duty threshold plate with integral sill gasket for use in conjunction with Raven door bottom seals.

  • Location:Door sill.
  • Finish:Satin clear (silver) or bronze anodised aluminium (25µm).
  • Fixing:Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-punched and countersunk.
  • Seal:RP404a. Grey flexible PVC.
  • Sizes:Available in stock lengths.
  • Access & Mobility NZ:NZ BC Compliance Doc. D1/AS1 1.3.2. UK/EU: Approved Document M.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

RAVEN RP4B Threshold Plate 1000mm

SKU WSRP4B.1000.BZA

In stock, within 1 week


Bronze AnodisedClear Anodised
1000mm3000mm2000mm

Total Price

$60.41
