Raven RP4T
  • Specification
  • Downloads

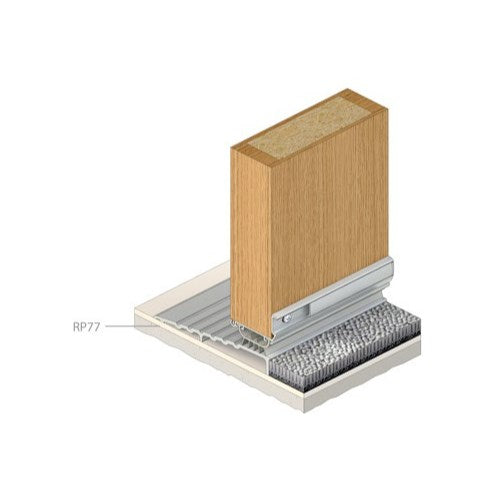

A weather seal, RP4T easily fits to the bottom of a door. It can be used in combination with threshold plates where even greater protection is required. RP4T is particularly suitable for roll_x0002_up doors. Its fixings are concealed and its multi-blade seal defies rain infiltration. Also available as an intumescent fire and hot smoke seal. Refer to RP114 for this feature.

  • Location:Roll-up doors. Single and double butt hinged doors or bulkhead applications.
  • Min/Max Gap:User determined.
  • Finish:Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
  • Seal:RP404 and RP404b. Grey PVC.
  • Sizes:Available in stock lengths.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP4T Door Bottom Seal Top Only 1000mm

SKU WSRP4T.1000.BZA

In stock, within 1 week


Bronze AnodisedPaintedClear Anodised
1000mm3000mm1250mm1500mm1750mm2000mm

Total Price

$73.18
