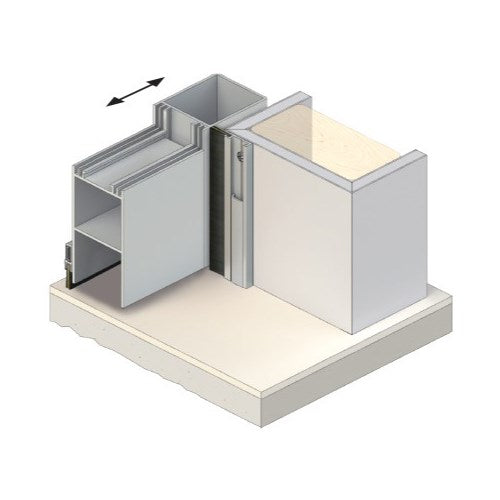

RP51F is a patented brush strip seal
that is ideal for sealing the head,
jambs and the bottom of automatic
sliding doors. The RP51F nylon brush
contains an additional barrier fin
which is effective in the exclusion of
medium temperature smoke, noise
Location:Head, jambs and bottom
of automatic sliding doors.
Min/Max Gap:Up to 13mm (user
Compression: 1mm to 2mm.
Finish:Satin clear (silver) anodised
aluminium (15µm) or paint at extra
Fixing:Concealed screw fix. Zinc
plated, cross recess head S.T. screws
and cover strip supplied. Fixing holes
Black fine, dense, UV stabilised
nylon filaments with a medium
temperature smoke barrier fin within
a galvanised spine.
Sizes:Available in stock lengths.
FireBrush Strip flammability index 1
when tested to AS1530.2.
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
EnergyNCC Pt. 220.127.116.11 & J3.4.
RAVEN RP51F Brush Strip 1250mm
