Raven RP51Si
  • Specification
  • Downloads

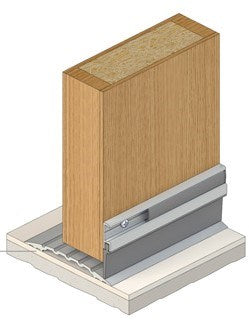

A heavy duty silicon rubber sweep seal for the bottom of outward opening doors. RP51Si has slotted fixing holes for adjustment with a push-in cover strip for concealed fixing. The RP51Si is ideal for use in conjunction with Raven threshold plates

  • Location:Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as an astragal seal.
  • Min/Max Gap:5mm to 20mm (user determined).
  • Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
  • Seal: RP351Si. Grey silicon rubber (SE).
  • Sizes:Available in stock lengths.
  • Fire & Smoke AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/120/30 and FD120.
  • Gasket flammability index 1 when tested to AS1530.2.
  • Energy NCC Pt. 3.12.3.3 & J3.4.

RAVEN RP51Si Door Bottom Seal 1000mm

SKU WSRP51Si.1000.BZA

In stock, within 1 week


Bronze AnodisedClear AnodisedPainted
1000mm1250mm1500mm2000mm3000mm

Total Price

$65.65
