Raven RP58
  • Specification
  • Downloads

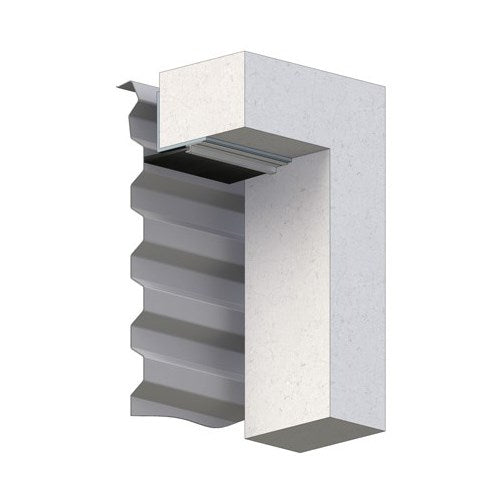

Nylon brush strip seals with aluminium carriers that are ideal where larger gaps are encountered. They can be fitted to lintels of roll-up doors to help prevent the ingress of birds and wind blown embers in bushfire prone areas. Note: Roll-up doors must have a fairly consistent gap when the door operates to avoid excessive flexing of the seal.

  • Location: Bottom of single, double, revolving or sliding doors and double acting pivot doors. Lintels of roll-up garage doors.
  • Min/Max Gap: 30mm to 50mm (user determined).
  • Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
  • Seal:Black fine, dense, UV stabilised nylon filaments.
  • Sizes: Available in stock lengths.
  • FireBrush Strip flammability index 1 when tested to AS1530.2.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • when used on a garage in accordance with AS 3959.

RAVEN RP58 75mm Brush Only 1000mm

SKU WSRP58.1000

In stock, within 1 week


BlackClear AnodisedPainted
1000mm2000mm3000mm

Total Price

$101.11
