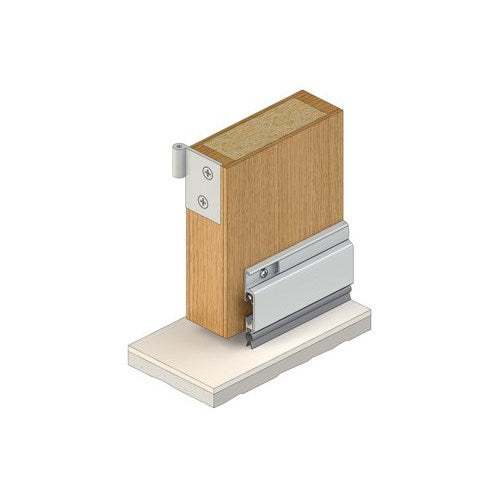

An adjustable, automatic door
bottom seal which is spring loaded
to lift clear of the floor when the door
is opened. Operated automatically
by pressure against the door stop on
its adjusting screw and incorporates
concealed fixings. The RP60 is
self levelling and can be used in
conjunction with Raven threshold
plates such as the RP13 and RP82.
-
Location: Face mounted on the
bottom of single and double butt
hinged doors.
-
Min/Max Gap: 3mm to 15mm.
-
Finish:Satin clear (silver), bronze
or bright gold anodised aluminium
(15µm).
-
Fixing:Concealed screw fix. Zinc
plated, cross recess head S.T. screws
and cover strip supplied. Fixing holes
are pre-slotted.
-
Seal:RP460. Black TPE.
-
Sizes: 915mm maximum (between
door stops). Unit cuts back to 450mm
(min).
-
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
1634-1).
- FRL & FRR-/240/30 and FD240.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
-
Design for Access and MobilityHigh efficiency mechanism to assist
with the closing force requirements
detailed in AS1428.1.
-
DurabilityTested to over 500,000
operating cycles without failure.
RAVEN RP60 Door Bottom Seal 915mm
