Raven RP62
  • Specification
  • Downloads

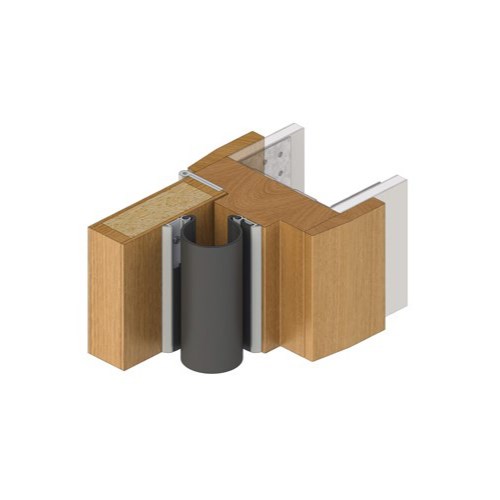

A safety strip which prevents fingers being jammed on the hinge side of a door. It is fixed to the door and the jamb on the hinged side. Note: It is recommended to fit RP62 to the full height of the door/jamb for maximum protection. For longer lengths, butt join together.

  • Location:Door and jamb of 0-180 degree opening butt hinged or centre pivot doors.
  • Finish:Satin clear (silver) anodised aluminium (15µm).
  • Fixing:Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are preslotted.
  • Seal:RP362. Black EPDM rubber
  • Sizes: 2100mm.
  • DurabilityTested to BS 8613:2017 Class 1 Finger protection devices for pedestrian doors.

RAVEN RP62 / 2100mm

SKU WSRP62.2100.BRWH

In stock, within 1 week


Brown / WhiteLight Grey / BlackPaintedClear Anodised
2100mm500mm2500mm

Total Price

$168.83$115.76
