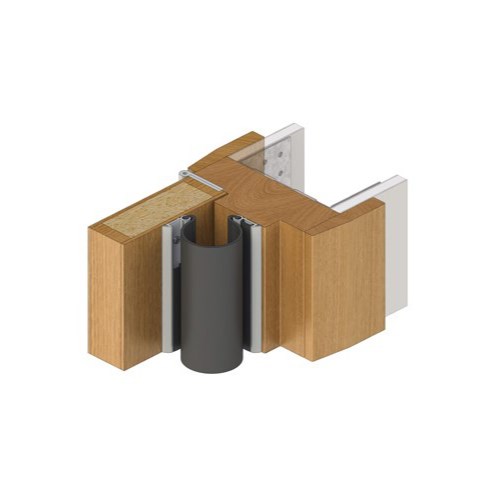

A safety strip which prevents fingers
being jammed on the hinge side of
a door. It is fixed to the door and the
jamb on the hinged side.
Note: It is recommended to fit
RP62LGBK to the full height of the door/
jamb for maximum protection. For
longer lengths, butt join together.
RP62LGBK is reversible for a light grey
or black finish.
-
Location:Door and jamb of 0-180
degree opening butt hinged or
centre pivot doors.
-
Finish:Satin clear (silver) anodised
aluminium (15µm).
-
Fixing:Screw fix. Zinc plated, cross
recess head S.T. screws and cover
strip supplied. Fixing holes are preslotted.
-
Seal:RP462LGBK. Reversible flexible
light grey/black PVC rubber. Light
grey and black flexible PVC cover
strips included.
-
Sizes: 2500mm.
-
Durability Tested to BS 8613:2017
Class 1 Finger protection devices for
pedestrian doors.
RAVEN RP62s Small / 2500mm
