A combined intumescent medium
temperature smoke and fire
seal which is heat activated. It is
unobtrusively set into a machined
groove around the perimeter of
timber frames and door edges. The
RP63 can be checked out in the latch
area to allow for the continuation of
the fin.
An effective medium temperature
smoke seal is achieved with a pair
of silicon fins between the door and
frame.
-

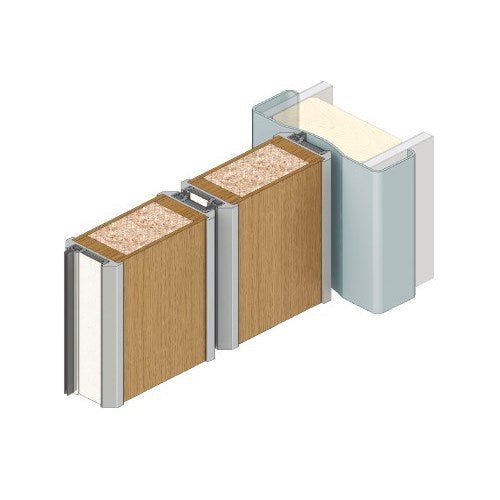

Location:Morticed into the door
frame and around stiles and head.
-
Min/Max Gap: 3mm to 4mm
-
Finish:Satin clear (silver) anodised
aluminium (15µm). Trim available in
antique white.
-
Fixing:Adhesive fix into a 30mm x
7mm groove.
-
Seal:RP371Si. Grey silicon rubber
(SE) with intumescent infill.
-
Sizes: 2400mm, 2100mm
-
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Approved Document B. (Tests
above are similar to BS EN 1634-1 &
BS 476 Pt. 20 & 22).
- FRL & FRR-/180/30 and FD180.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP63 Intumescent Seal Antique White 2100mm
