Raven RP65
  • Specification
  • Downloads

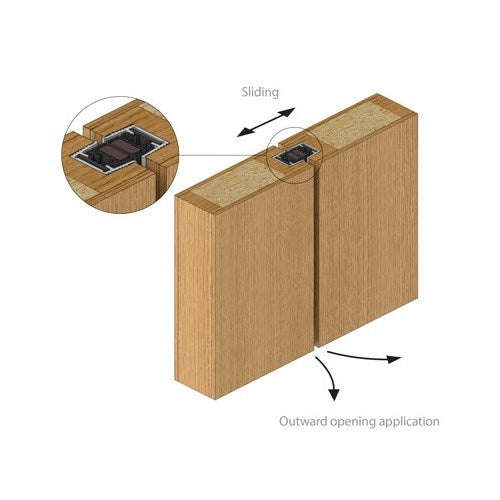

A refrigeration type vinyl magnetic strip in an anodised aluminium channel which is morticed into the stiles of pivot, sliding or butt hinged double doors, to form an effective astragal. The magnetic strip is locked in place to prevent creeping and has sufficient strength that latches may not be required (centre latching can not be used). Can be used in conjunction with Raven door bottom and perimeter seals. Note: RP65 is best suited to infrequent use and door closer hold open applications.

  • Location:Meeting stiles of double swinging and sliding timber doors.
  • Min/Max Gap:5mm to 7mm. (Swing doors).
  • Finish:Satin clear (silver) anodised aluminium (15µm).
  • Fixing: Push-in locking fit into a 16.5mm x 12mm deep groove and optional adhesive. Minimum door thickness of 40mm required.
  • Seal:Black PVC with magnetic strip.
  • Sizes: Available in stock lengths.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP65 Astragal Seal Magnetic 2250mm

SKU WSRP65.2250.CA

In stock, within 1 week


Clear Anodised
2250mm3000mm

Total Price

$98.76
