A heavy duty, fully morticed,
automatic door bottom seal that is
spring loaded to lift clear of the floor
when the door is opened. It is self
levelling and reversible for left and
right handed operation. Acoustically
designed, featuring an EPDM foam
gasket for acoustic door applications.
RP70 is operated automatically by
pressure against the door jamb on its
adjustable brass strike.

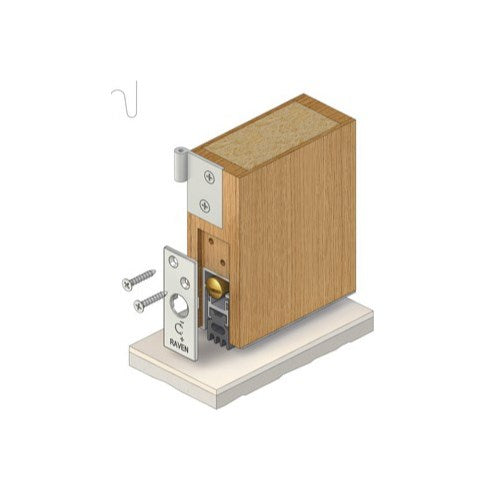

Location: Fully morticed into the
bottom of single and double butt
hinged doors (minimum door
thickness of 45mm). For double
doors, plain meeting stiles are
Min/Max Gap:3mm to 13mm.
Finish: Satin clear (silver) anodised
Fixing:Screw fix. Colour matched
escutcheon plates and zinc plated,
cross recess head S.T. screws
Seal:RP338. Black EPDM sponge (SE).
Sizes: 1500mm, 1220mm, 1070mm,
920mm, 610mm, 450mm to 300mm
(min). Seals cut back to exact size.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1.
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
- FRL & FRR-/240/30 and FD240.
EnergyNCC Pt. 18.104.22.168 & J3.4.
Design for Access and MobilityHigh efficiency mechanism to assist
with the closing force requirements
detailed in AS1428.1.
DurabilityTested to over 1,000,000
operating cycles without failure.
RAVEN RP70 Screw Bag & Aluminium Escut Plate Set CA
