Raven RP70Si
  • Specification
  • Downloads

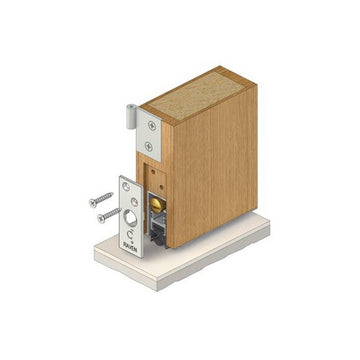

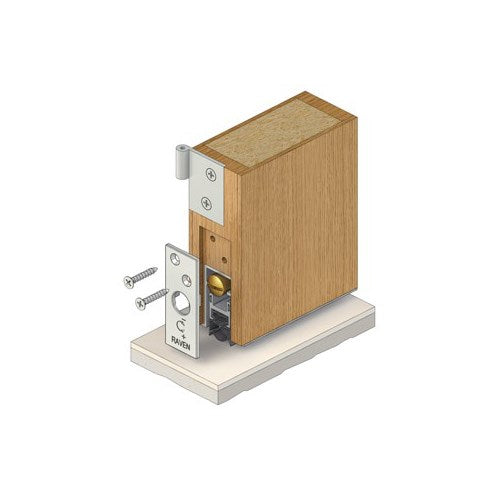

A heavy duty, fully morticed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, featuring a silicon gasket for smoke and fire door applications. RP70Si is operated automatically by pressure against the door jamb on its adjustable brass strike.

  • Location:Fully morticed into the bottom of single and double butt hinged doors (minimum door thickness of 45mm). For double doors, plain meeting stiles are required.
  • Min/Max Gap:3mm to 13mm.
  • Finish: Satin clear (silver) anodised aluminium (15µm).
  • Fixing:Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
  • Seal:RP338Si. Grey silicon rubber (SE).
  • Sizes: 1500mm, 1220mm, 1070mm, 920mm, 610mm, 450mm to 300mm (min). Seals cut back to exact size.
  • Cert. GVYI.R37913
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • Design for Access and MobilityHigh efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
  • DurabilityTested to over 1,000,000 operating cycles without failure.

RAVEN RP70Si Door Bottom Seal 1070mm

SKU WSRP70Si.1070.CA

In stock, within 1 week


Clear Anodised
1070mm1220mm1500mm450mm610mm920mm

Total Price

$184.10
