Raven RP71Si
  • Specification
  • Downloads

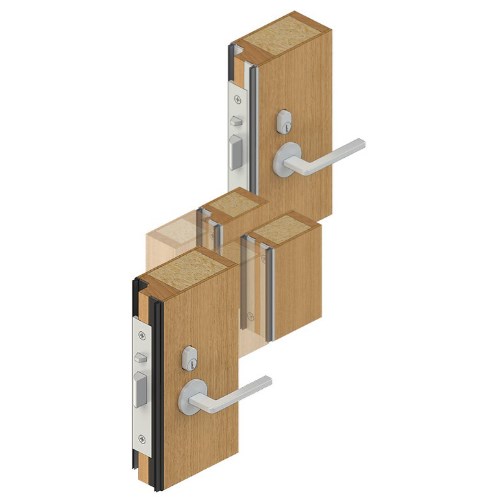

A medium temperature smoke astragal seal designed for plain or rebated meeting stiles of timber double doors where a centre latch bolt may be required or, where both doors are active. The seal is achieved by a pair of silicon fins. Two RP71Si seals are installed on to the one door stile which allows space for a latch between the two seals. The legs of the seals can be checked out to accommodate the latch bolt front plate providing a continuous seal. Note: Minimum door thickness subject to centre latch and dimensions of morticed door bottom seals.

  • Location:Meeting stiles of double butt hinged and centre pivot double acting doors.
  • Min/Max Gap:3mm to 5mm.
  • Finish: Satin clear (silver), bronze, black anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-drilled and countersunk.
  • Seal:RP371Si. Grey or black silicon rubber (SE).
  • Sizes: Available in stock lengths.
  • Acoustic AUS/NZ: NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP71Si Astragal Seal 1000mm

SKU WSRP71Si.1000.CA

In stock, within 1 week


Clear AnodisedBronze AnodisedPaintedBlack
1000mm3000mm2250mm2750mm2500mm

Total Price

$54.58
