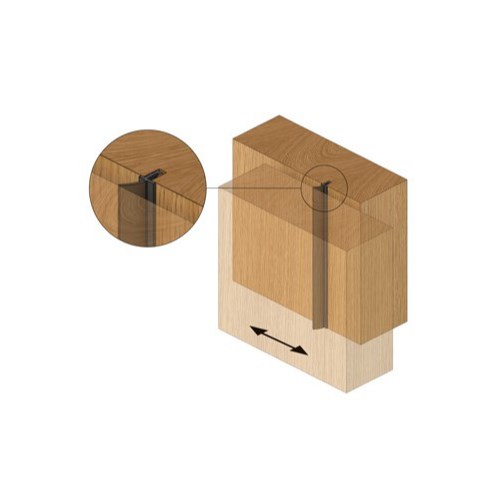

An extremely flexible co-extruded
PVC sweep seal that fits into a saw
kerf groove cut into the frame
or door. It holds tight radii and
compound curves when bent around
a frame. It resists UV, ozone, mildew
and colour change.
The RP73 can be used in conjunction
with Raven automatic door bottom
seals and brush strip seals.
-
Location:Perimeter of timber sliding
doors, pivot doors and door frames.
-
Min/Max Gap:6mm to 8mm.
-
Fixing:Push-in locking fit into a
2.5mm x 6mm deep kerf groove.
-
Seal:Brown rigid and flexible PVC.
-
Sizes: Coils of 1m increments up to
100m.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP73 Perimeter Seal 1000mm
