Raven RP76
  • Specification
  • Downloads

Combined intumescent smoke and fire seals which are heat activated. It is unobtrusively set into a machined groove (10x6mm) around the perimeter of timber frame or door edges. Dependent on application, fire ratings of one to four hours have been certified by fire door manufacturers using RP76 and RP76Si intumescent fire and smoke seals. RP76 utilises a woven pile polypropylene ambient (cold) smoke seal. RP76Si utilises a pair of silicon fins to achieve a medium temperature smoke seal.

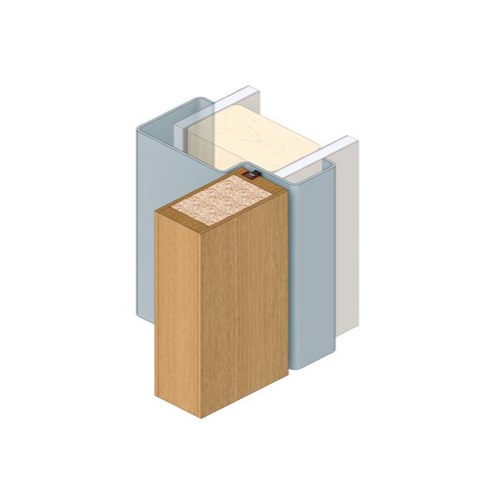

  • Location:Morticed into the door frame and around stiles and head.
  • Min/Max Gap:3mm to 4mm.
  • Finish:Cranberry red rigid PVC holder with intumescent infill.
  • Fixing:Self adhesive into a 10mm x 6mm groove. Note: Contact surface must be clean, smooth and if painted, well cured.
  • Seal:Polypropylene pile ambient temperature smoke seal.
  • Sizes: 2100mm.
  • Fire & Smoke AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. (Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22).
  • FRL & FRR-/240/60 and FD240.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP76 Intumescent Seal Seal 2100mm

SKU WSRP76.2100.RD

In stock, within 1 week


Red
2100mm

Total Price

$57.80
