Raven RP76Si
  • Specification
  • Downloads

Combined intumescent smoke and fire seals which are heat activated. It is unobtrusively set into a machined groove (10x6mm) around the perimeter of timber frame or door edges. Dependent on application, fire ratings of one to four hours have been certified by fire door manufacturers using RP76 and RP76Si intumescent fire and smoke seals. RP76 utilises a woven pile polypropylene ambient (cold) smoke seal. RP76Si utilises a pair of silicon fins to achieve a medium temperature smoke seal.

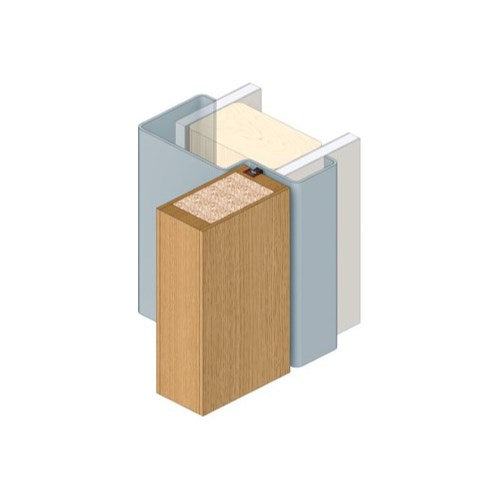

  • Location:Morticed into the door frame and around stiles and head.
  • Min/Max Gap:4mm to 5mm.
  • Finish:Cranberry red rigid PVC holder with intumescent infill.
  • Fixing:Self adhesive into a 10mm x 6mm groove. Note: Contact surface must be clean, smooth and if painted, well cured.
  • Seal:RP371Si. Grey silicon rubber (SE) medium temperature smoke seal.
  • Sizes: 2100mm.
  • FireGasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.

RAVEN RP76Si Intumescent Seal Seal 2100mm

SKU WSRP76Si.2100.RD

In stock, within 1 week


Red
2100mm

Total Price

$62.21
