Raven RP78
  • Specification
  • Downloads

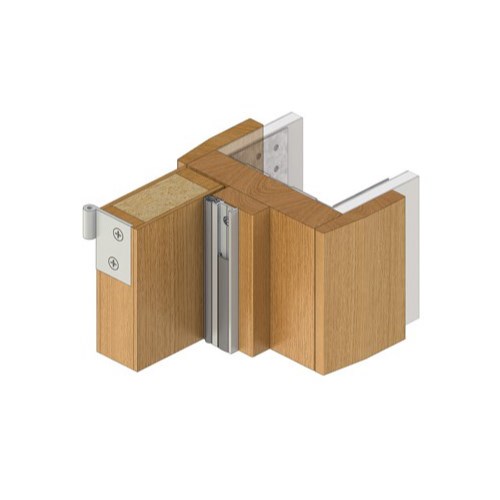

An acoustic medium temperature smoke door frame seal designed for installation on door stops. Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door. The RP78Si can be mitred or butt jointed for a neat finish. Can be used in conjunction with the Raven RP8Si, RP16Si, RP35Si, RP38Si, RP99Si, RP126Si, RP127Si or RP128Si automatic door bottom seals.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap:0mm to 6mm.
  • Finish:Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws, self drilling screws (metal) and cover strip supplied.
  • Seal:RP394Si. Grey or light grey silicon rubber (SE).
  • Sizes: Available in door set sizes or stock lengths.
  • Cert. GVYI.R37913.
  • ANSI/BHMA A156.22.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/60 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4

RAVEN RP78Si Perimeter Seal Seal with Silicon Gasket 1000mm

SKU WSRP78.1000.CA

In stock, within 1 week


Clear Anodised
1000mm1250mm1500mm2000mm2250mm2500mm3000mmDouble Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm

Total Price

$61.88
