RAVEN RP78Si Perimeter Seal, Long Single Door Set 6300mm - Sides 2750mm, Top 1000mm in Clear Anodised
1 1

Raven RP78 - Door Sets

$183.63
$183.63 $183.63
Save 0
Sold out
Tax included.

Delivery Time:

Downloads

Brochure

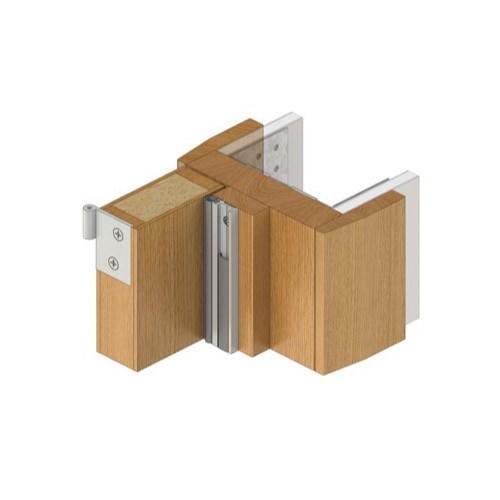

An acoustic medium temperature smoke door frame seal designed for installation on door stops. Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door. The RP78Si can be mitred or butt jointed for a neat finish. Can be used in conjunction with the Raven RP8Si, RP16Si, RP35Si, RP38Si, RP99Si, RP126Si, RP127Si or RP128Si automatic door bottom seals.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap:0mm to 6mm.
  • Finish:Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws, self drilling screws (metal) and cover strip supplied.
  • Seal:RP394Si. Grey or light grey silicon rubber (SE).
  • Sizes: Available in door set sizes or stock lengths.
  • Cert. GVYI.R37913.
  • ANSI/BHMA A156.22.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/60 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”.
  • EnergyNCC Pt. 3.12.3.3 & J3.4
