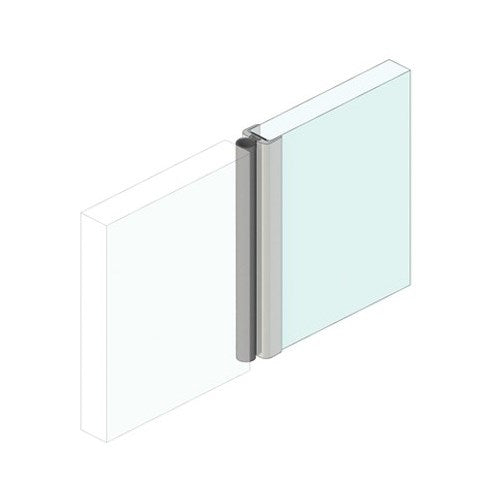

Aluminium astragal seals designed
for frameless glass doors. The woven
pile sealing strip in RP79 and RP88 is
combined with a weather fin to form
an effective weather and energy seal.
RP79Si utilises silicon rubber fins for
medium temperature smoke door
applications.
Use in conjunction with Raven brush
strip door bottom seals RP2b, RP74
and threshold plates.
-
Location:Meeting stiles
of 12mm thick frameless glass doors.
-
Min/Max Gap:8mm to 12mm (prior to
installation).
-
Finish:Satin clear
(silver) anodised aluminium (15µm).
-
Fixing:Self adhesive. Note: Contact
surface must be clean, smooth and if
painted, well cured. Self adhesive seals
will not adhere to oiled or alkyd finishes
or to easy clean wash and wear paint
surfaces.
-
Seal:RP640. Black TPE
-
Sizes: Available in stock lengths.
-
FireGasket flammability index ≤ 5
when tested to AS1530.2.
-
SmokeNCC Spec. C3.4 for smoke
doors
RAVEN RP79H Astragal Seal 3000mm
