Raven RP82
  • Specification
  • Downloads

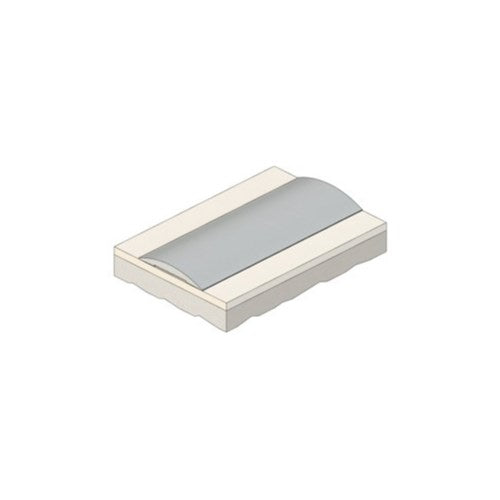

Low profile threshold plates that are ideal for use in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.

  • Location:Bottom of single and double outward opening doors or industrial sliding doors.
  • Min/Max Gap:Door sill.
  • Finish:Satin clear (silver) or bronze anodised aluminium (25µm).
  • Fixing:Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Sizes: Available in stock lengths.
  • Cert. GVYI.R37913
  • Access & Mobility AUS/NZ: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU:Approved Document M.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

RAVEN RP82 Threshold Plate 1000mm

SKU WSRP82.1000.BZA

In stock, within 1 week


Bronze AnodisedClear Anodised
1000mm1250mm1500mm2000mm3000mm

Total Price

$61.40
