Raven RP85
  • Specification
  • Downloads

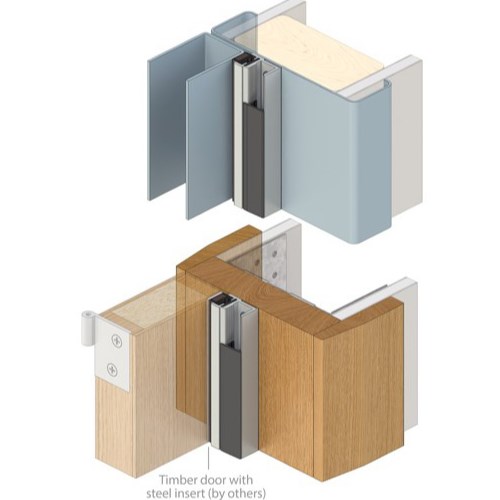

A refrigeration type vinyl magnetic strip in an anodised aluminium housing with concealed fixings. RP85 provides a tight seal for steel clad doors and jambs and may be used as a stop. For timber doors, a thin steel strip can be attached to the door face. The magnetic strip has sufficient closing strength that latches may not be required. Can be used in conjunction with Raven door bottom seals and astragals. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap:0mm to 4mm (user determined)
  • Finish:Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
  • Seal:Black PVC.
  • Sizes:Available in stock lengths.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP85 Perimeter Seal 2250mm

SKU WSRP85.2250.CA

In stock, within 1 week


Clear AnodisedPainted
2250mm3000mm

Total Price

$159.79
