Raven RP87HSi
  • Specification
  • Downloads

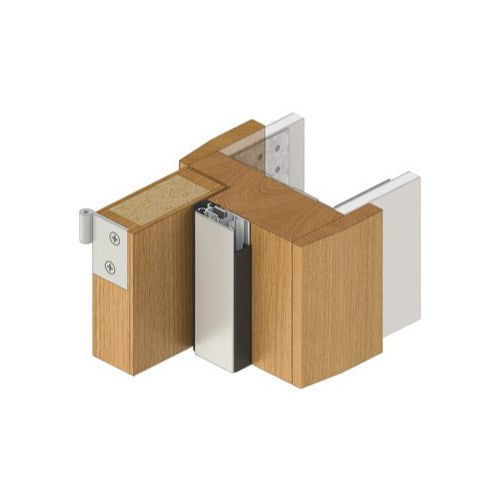

Designed for clean room and health care facilities, the RP87HSi has an easy wipe clean design where the smooth silicon sealing gasket also contains an antimicrobial additive for maximum protection against surface bacteria. RP87HSi is an effective door stop seal for noise, light and medium temperature smoke. It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors. With tamper proof concealed fixings, the RP87HSi utilises independently adjustable screws to achieve up to 6mm sealing adjustment for maximum noise control. The silicon seal only requires normal door closing force. Note: If fixing to rebated frames of single doors, specify a long backset door latch.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap: 0mm to 6mm.
  • Finish:Satin clear (silver) anodised aluminium (15µm) or paint at extra cost.
  • Fixing:Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
  • Seal:RP384Si. Black silicon rubber (SE).
  • Sizes:Available in door set sizes.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • UK/EU: Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU: Approved Document B
  • FRL & FRR-/240/30 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”
  • EnergyNCC Pt. 3.12.3.3 & J3.4.

RAVEN RP87HSi Perimeter Seal, Double Door Set 6300mm, Double Door Set - Sides 2100mm, Top 2100mm

SKU WSRP87HSi.DDS.CA

In stock, within 1 week


Clear Anodised
Double Door Set - Sides 2100mm, Top 2100mmLong Double Door Set - Sides 2100mm, Top 2750mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm

Total Price

$514.16
