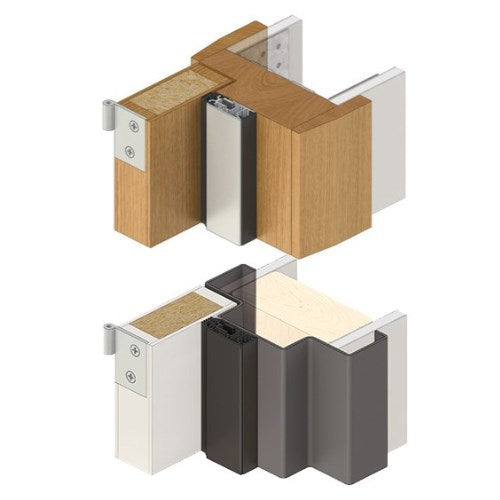

RP87Si is an effective door stop seal
for noise, light and smoke. It can
be butt jointed for a neatly finished
continuous seal, replacing the
conventional doorstop on metal or
timber framed doors. With tamper
proof concealed fixings, the RP87Si
utilises independently adjustable
screws to achieve up to 6mm sealing
adjustment for maximum noise
control. The silicon rubber seal only
requires normal door closing force.
Note: If fixing to rebated frames of
single doors, specify a long backset
door latch.
-
Location:Head and jambs of single
and double butt hinged doors.
-
Min/Max Gap:0mm to 6mm.
-
Finish: Satin clear (silver), black
anodised aluminium (15µm) or paint
at extra cost.
-
Fixing:Concealed screw fix. Zinc
plated, cross recess head S.T. screws
and cover strip supplied.
-
Seal:RP310Si. Black silicon rubber (SE).
-
Sizes: Available in door set sizes or
stock lengths.
- Cert. GVYI.R37913.
-
Acoustic AUS/NZ:NCC Spec. F5.5.
-
UK/EU: Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU: Approved Document B.
BS EN 1634-1.
- FRL & FRR-/240/30 and FD240.
- Gasket flammability index 1 when
tested to AS1530.2.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
RAVEN RP87Si Perimeter Seal 1000mm
