A concealed, automatic door bottom
seal that is spring loaded to lift
clear of the floor when the door is
opened. It is acoustically designed,
featuring silicon gaskets for medium
temperature smoke and fire door
applications. Operated automatically
by pressure against the door jamb on

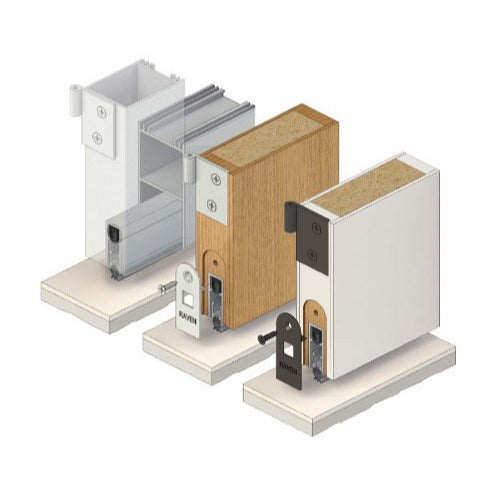

its adjustable strike. RP8Si can also be
fitted into the bottom rail of a metal
door by the fabricator. Has a level
adjustment to achieve an optimum
seal.
-
Location:Fully morticed into a
15mm x 34mm groove into the
bottom of single and double butt
hinged timber and metal doors.
-
Min/Max Gap:3mm to 13mm.
-
Finish:Satin clear (silver), bronze or
black anodised aluminium (15µm).
-
Fixing:Concealed screw fix with
colour matched stainless steel
escutcheon plates and screws
supplied.
-
Seal:RP308Si. Grey silicon rubber (SE).
-
Sizes: 1500mm, 1220mm, 1070mm,
920mm, 820mm, 600mm, 380mm
to 295mm(min). Seals cut back to
exact size.
- Cert. GVYI.R37913
- ANSI/BHMA A156.22
-
Acoustic AUS/NZ:NCC Spec. F5.5.
-
UK/EU: Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ:NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
1634-1).
- FRL & FRR-/240/60 and FD240.
- Gasket flammability index 1 when
tested to AS1530.2.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
-
EnergyNCC Pt. 3.12.3.3 & J3.4.
-
Design for Access and MobilityHigh efficiency mechanism to assist
with the closing force requirements
detailed in AS1428.1.
-
DurabilityTested to over 1,000,000
operating cycles without failure.
