Raven RP91
  • Specification
  • Downloads

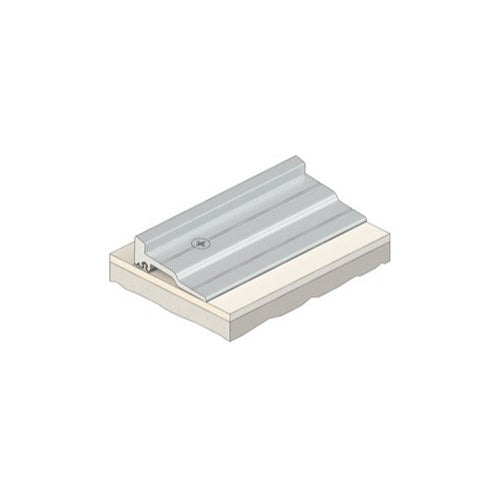

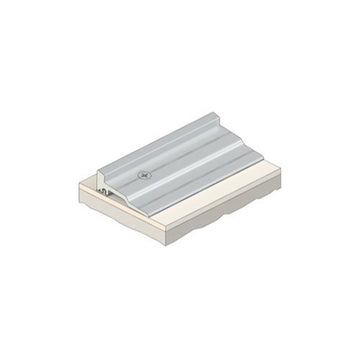

A heavy duty threshold plate with integral sill gasket that can be used in conjunction with Raven door bottom seals on roll-up and tilt up doors. RP91 has an upstand to prevent water penetration and a ramped section to shed water away.

  • Location:Door sill.
  • Finish:Satin clear (silver) anodised aluminium (25µm).
  • Fixing:Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Seal:RP404a. Grey flexible PVC.
  • Sizes:Available in stock lengths.
  • Access & Mobility NZ:NZ BC Compliance Doc. D1 Pt. 1.3.2.
  • Fire AUS/NZ:NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. Approved to BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

RAVEN RP91 Threshold Plate 3000mm

SKU WSRP91.3000.CA

In stock, within 1 week


Clear Anodised
3000mm

Total Price

$171.01
