Raven RP92Si
  • Specification
  • Downloads

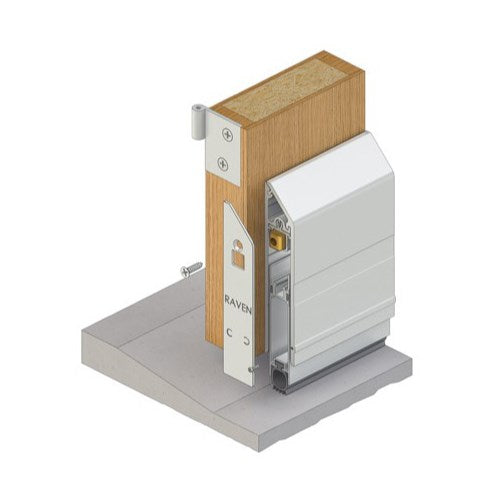

A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Ideal for butt hinged doors with large gaps such as where internal access ramps are used and large clearances are necessary. The RP92Si can accommodate ramped floors/sills with gradients up to 1:8 and utilises an aesthetic extruded aluminium cover for concealed fixing.

  • Location:Face mounted on the bottom of timber or metal single and double butt hinged doors.
  • Min/Max Gap:25mm to 55mm. Larger gaps can be accommodated if set lower on the door bottom and smaller gaps if set higher on the door bottom (user determined).
  • Finish:Satin clear (silver) anodised aluminium (15µm) with black anodised inner.
  • Fixing:Concealed screw fix. Adhesive striker plate, escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
  • Seal:RP347Si. Black silicon rubber (SE).
  • Sizes:1200mm, 1070mm, 920mm, 820mm to 600mm(min). Seals cut back to exact size.
  • Access & Mobility AUS/NZ:NCC D3, D3.2. Designed with high efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
  • UK/EU:Approved Document M.
  • FireGasket flammability index 1 when tested to AS1530.2.
  • Smoke AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2(b).
  • UK/EU:Approved Document B.
  • EnergyNCC Pt. 3.12.3.3 & J3.4.
  • Durability Tested to over 1,000,000 operating cycles without failure.

RAVEN RP92Si Door Bottom Seal 1070mm

SKU WSRP92Si.1070.CA

In stock, within 1 week


Clear AnodisedBronze AnodisedPainted
1070mm920mm1200mm820mm915mm

Total Price

$570.72
