Raven RP93Si
  • Specification
  • Downloads

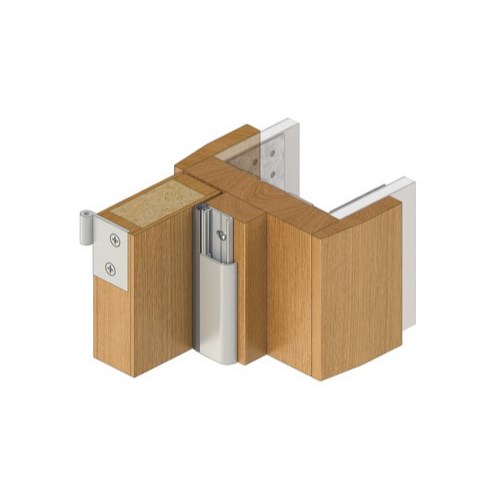

A weather and acoustic seal suitable for plain or rebated frames. RP93Si is quick and easy to install (mitre joint only) to the head and jambs without removing the door. Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and, with a tamper proof cover strip, provides a fit and forget feature. Note: If fixing to rebated frames of single doors, specify a long backset door latch. The tamper proof aluminium cover strip is not recommended for removal once installed. Refer to RP10Si or RP78Si for this feature.

  • Location:Head and jambs of single and double butt hinged doors.
  • Min/Max Gap:0mm to 6mm.
  • Finish:Satin clear (silver) anodised aluminium (15µm) or paint at extra cost (cover strip only).
  • Fixing:Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
  • Seal:RP393Si. Black silicon rubber (SE).
  • Sizes:Available in door set sizes or stock lengths.
  • Cert. GVYI.R37913.
  • Acoustic AUS/NZ:NCC Spec. F5.5.
  • UK/EU:Approved Document E. Rated to BS EN ISO 717-1.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30 and FD240.
  • Gasket flammability index 1 when tested to AS1530.2.
  • SmokeNCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501- 2 “Sa”, “Sm”
  • Energy NCC Pt. 3.12.3.3 & J3.4.

RAVEN RP93Si Perimeter Seal 2250mm

SKU WSRP93Si.2250.CA

In stock, within 1 week


Clear AnodisedPainted
2250mm3000mmDouble Door Set - Sides 2100mm, Top 2100mmLong Single Door Set - Sides 2750mm, Top 1000mmSingle Door Set - Sides 2100mm, Top 1000mm

Total Price

$109.36
